Introduction
Thermal shock testing plays a vital role in modern product development and quality assurance. Many products experience sudden temperature changes during transportation, storage, and daily operation. These rapid changes can affect performance, reliability, and safety. Thermal shock testing helps manufacturers understand how materials and components respond to extreme temperature transitions.
Industries such as electronics, automotive, aerospace, medical devices, and defence depend on thermal shock testing to ensure product durability. To achieve consistent and reliable results, organisations follow recognised thermal shock test standards. These standards define testing methods, environmental conditions, and performance requirements.
Understanding thermal shock test standards helps manufacturers improve product quality, reduce failures, and meet industry regulations.
Understanding Thermal Shock Testing

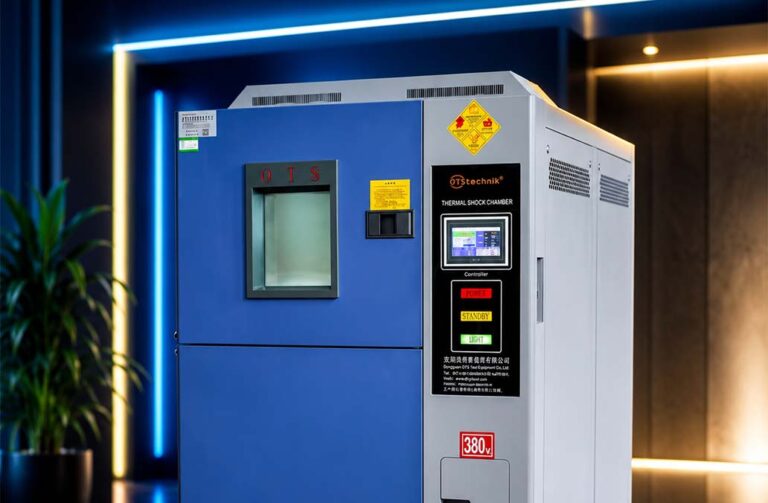

A Thermal Shock Test Chamber (Two Box) is commonly used to evaluate how products respond to rapid temperature changes. This testing method moves test samples between hot and cold environments within a controlled system. The process induces stress in materials and components, enabling engineers to identify weaknesses before products reach the market.
Thermal shock testing simulates real-world conditions in which products may rapidly transition from high to low temperatures, or vice versa. These sudden transitions can cause cracking, warping, delamination, electrical failure, or material fatigue. By performing thermal shock tests, manufacturers can assess product reliability and predict long-term performance.
The test conditions vary depending on the product type, industry requirements, and applicable standards. However, the main objective remains the same, ensuring that products can withstand severe temperature fluctuations without failure.
Importance of Thermal Shock Test Standards
Thermal shock test standards provide a structured framework for testing procedures. Without standardised methods, test results may vary between laboratories and manufacturers. Standards ensure consistency, repeatability, and accuracy.
Following recognised standards offers several benefits. First, it helps manufacturers compare results across different facilities. Second, it improves product reliability by identifying potential weaknesses during development. Third, it supports compliance with industry regulations and customer requirements.
Standards also help organisations reduce product recalls and warranty claims. By detecting problems early in the design process, companies can make improvements before products enter production. This approach saves both time and resources while enhancing customer satisfaction.
Common Thermal Shock Test Standards
Several international standards govern thermal shock testing. Each standard serves specific industries and applications.
IEC 60068 Series
The IEC 60068 series is one of the most widely used environmental testing standards. Developed by the International Electrotechnical Commission, it provides guidelines for testing electrical and electronic equipment under various environmental conditions.
The thermal shock sections of this standard define temperature ranges, exposure times, transfer methods, and evaluation criteria. Many electronics manufacturers rely on these procedures to validate product durability.
MIL STD 810
MIL STD 810 is widely used in military and defence applications. It includes environmental testing methods designed to evaluate equipment performance under harsh operating conditions.
The thermal shock requirements within this standard help determine whether equipment can withstand rapid temperature changes encountered during military operations. Aerospace and defence manufacturers frequently use these testing methods.
JESD22 Standards
The JEDEC JESD22 standards focus on semiconductor devices and microelectronics. These standards are particularly important for integrated circuits, electronic components, and packaging technologies.
Thermal shock testing under JESD22 helps manufacturers evaluate solder joints, package integrity, and component reliability. As electronic devices continue to become smaller and more complex, these standards remain highly relevant.
Equipment Used for Standard Compliance
A Thermal Chamber – OTS Technik is designed to support testing procedures that align with industry standards. Modern thermal shock chambers provide precise temperature control, rapid transfer times, and reliable monitoring systems.
Advanced chambers can operate across extreme temperature ranges while maintaining consistent performance throughout testing. Automated controls help operators adhere to standard requirements more accurately and reduce the risk of human error.
The choice of testing equipment depends on several factors, including sample size, required temperature range, testing frequency, and applicable standards. Selecting suitable equipment is essential for obtaining valid and repeatable results.
Key Parameters in Thermal Shock Testing
Thermal shock test standards typically define several critical parameters that influence test outcomes.
Temperature Range
The selected temperature extremes must reflect actual operating conditions. Standards often specify minimum and maximum temperature limits based on the intended application.
Dwell Time
Dwell time refers to the period during which the sample remains in the hot or cold zone. Proper dwell times ensure that the product reaches the target temperature before transfer.
Transfer Time
Transfer time is the duration required to move the sample between temperature zones. Short transfer times increase thermal stress and are often required to meet certain standards.
Number of Cycles
Many standards require multiple thermal shock cycles to evaluate long-term durability. The required number of cycles varies depending on industry requirements and product specifications.
Applications Across Industries
Thermal shock testing is used across a wide range of industries. In the electronics sector, manufacturers use thermal shock tests to verify circuit board reliability and component durability. Automotive companies test sensors, control units, and battery systems to ensure reliable performance under changing environmental conditions.
In aerospace applications, thermal shock testing helps validate components exposed to extreme temperature variations during flight. Medical device manufacturers also use thermal shock testing to confirm that critical equipment remains functional under demanding conditions.
The growing complexity of modern products makes thermal shock testing increasingly important across all sectors. Reliable testing helps ensure product safety, performance, and longevity.
Best Practices for Meeting Thermal Shock Standards
Manufacturers should follow several best practices when conducting thermal shock tests. First, they should carefully select the applicable standard based on product type and industry requirements. Second, testing equipment should be properly calibrated and maintained.
Accurate documentation is equally important. Test records should include temperature settings, cycle counts, dwell times, transfer times, and inspection results. Regular review of testing procedures helps maintain compliance with evolving standards.
Organisations should also train personnel on standard requirements and testing methods. Skilled operators contribute to more reliable results and improved product quality.
Conclusion
Thermal shock test standards provide the foundation for reliable environmental testing across many industries. These standards establish consistent procedures that help manufacturers evaluate product performance under rapid temperature changes. By following recognised guidelines such as IEC 60068, MIL STD 810, and JESD22, organisations can improve product reliability, support regulatory compliance, and reduce the risk of failure.
As products continue to operate in demanding environments, thermal shock testing remains an essential part of quality assurance. Proper testing methods, suitable equipment, and adherence to industry standards help ensure that products perform safely and effectively throughout their service life.
