Material durability and structural integrity evaluation rely on accurate mechanical property measurements. A Universal Testing Machine provides the necessary platform to measure tension, compression, bending, and shear. Determining the strength and resilience of metals, plastics, rubber, or composites requires a system capable of applying precise loads while capturing detailed data.
Once a laboratory determines the requirement for a Tensile Tester, the most significant technical decision involves selecting the appropriate drive system. This choice impacts the range of materials tested, the precision of the results, and the long-term reliability of the laboratory workflow. Torontech provides both servo-hydraulic and electromechanical options to accommodate diverse testing requirements.
What a Universal Testing Machine System Really Includes
Selecting a Universal Testing Machine involves more than choosing a load frame. A complete testing configuration integrates several components to manage a specific Universal Machine Testing workflow. These systems typically include a load frame, a drive system, a digital controller, high-performance software, and specialized grips or fixtures.
Advanced setups often incorporate strain measurement tools such as non-contact video extensometers or environmental equipment like tensile test chambers. The drive system serves as the mechanical engine of the unit, determining how force is applied to the specimen. Understanding the interaction between these components allows for a more successful equipment selection process.
The primary keyword Universal Testing Machine represents a wide variety of hardware configurations. While the frame provides the structure, the drive system dictates the force capacity and the speed of the test. Modern systems often use digital controllers to synchronize these elements, allowing for precise control during complex loading cycles.
Accessories such as non-contact extensometers further improve data quality by measuring strain without physically touching the material. This integrated approach ensures that the final data is repeatable and compliant with international standards.
Servo-Hydraulic vs Electromechanical: The Core Difference
Mechanical testing frames primarily utilize two types of drive mechanisms. Each technology serves a distinct range of force requirements and material types.
Servo-Hydraulic Universal Testing Machine
Servo-hydraulic Universal Testing Machine systems utilize a high-pressure hydraulic power unit and a servo valve to control the movement of a piston. These platforms are designed for higher-force workflows where robust loading remains a primary requirement. Structural metals, heavy-duty composites, and large-scale components often require the significant force capacity that only hydraulic drive systems can provide.
Torontech positions servo-hydraulic and high-capacity 3,000 kN hydraulic systems as the standard for heavy-duty programs. These machines withstand the significant energy release that occurs when high-strength materials fail. They remain the preferred choice for production quality control and research programs where specimens are tough and force requirements are demanding.
Electromechanical Universal Testing Machine

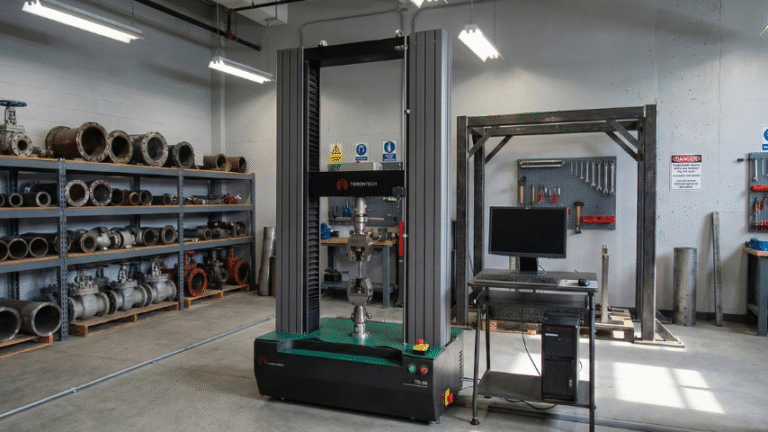

Electromechanical frames use an electric motor, gear reduction system, and one or two lead screws to move the crosshead. This drive system provides exceptional precision and repeatability at low to mid-force ranges. These machines are well-suited for laboratories prioritizing easy setup, fine method control, and consistent data export.
Standard materials like plastics, rubber, textiles, and thin metal foils benefit from the smooth and steady crosshead movement of an electromechanical frame. These systems offer a cleaner operation compared to hydraulic units and are generally easier to maintain in a standard laboratory environment. They provide the flexibility needed for routine testing across a broad spectrum of material types.
Start With Force Requirements, Not Brand Preference
Force range selection acts as the primary filter during the procurement process. Drive-system technology should align with the anticipated load requirements to prevent instrument damage or data inaccuracy. The classification of systems into single-column, dual-column electromechanical, and various hydraulic classes reflects this load-centric approach.
The drive-system choice should reflect several key factors:
- Specimen strength and the anticipated maximum load.
- Total weight of the required grips and fixtures.
- Future testing requirements that may involve higher-force materials.
- Daily frequency of high-load testing cycles.
A UTM Machine must have sufficient capacity to handle the strongest samples without operating at its absolute limit. Selecting a system based on current force needs while allowing for a safety margin and future expansion secures a longer operational lifespan.
Choose by Workflow: Routine Lab Testing vs Heavy-Duty Programs
The intensity of the testing schedule often dictates which mechanical platform provides the best value. Decision-making should prioritize how the laboratory operates on a daily basis.
Choose servo-hydraulic when…
Laboratories running frequent high-load tests on structurally demanding materials require the robustness of a hydraulic system. If the workflow involves tough specimens that generate significant vibration or recoil upon failure, a servo-hydraulic frame remains the most reliable choice. These systems handle heavier fixtures and more demanding loading rates, making them suitable for advanced structural R&D or high-volume industrial QC.
Choose electromechanical when…
Precision and repeatability in low to mid-force ranges are the primary objectives. Electromechanical systems favor laboratories handling varied routine materials where software convenience and daily usability take priority. Operators often find these frames easier to set up for different test methods. They provide consistent reporting and straightforward data management, which is important for labs focused on standardized material characterization.
Materials and Specimen Types: Where Each Drive System Fits Best
The physical characteristics of the material often point toward a specific drive-system technology.
- Metals and structural alloys with high force requirements typically favor servo-hydraulic loading.
- Plastics, rubber, and elastomers benefit from the precise speed control of electromechanical frames.
- Textiles and thin films are best suited for compact, single-column electromechanical systems.
- Composites with varied force requirements may use either system depending on the specific ASTM or ISO method.
- Large or unusually heavy specimens often necessitate the structural capacity of a larger hydraulic unit.
- Mixed-material laboratories often value the flexibility of electromechanical systems for diverse daily tasks.
Single-Column, High-Capacity, and Horizontal Options
Drive-system technology is not the only factor determining the suitability of a machine. The physical layout of the frame also impacts laboratory efficiency. Single-column systems provide a compact, lab-friendly solution for everyday tensile and compression work at very low loads. They are a practical choice for small-scale testing where bench space is limited.
High-capacity 3,000 kN systems represent the ultimate step-up for maximum load requirements. Horizontal tensile beds serve as another specialized format. These systems matter when specimen geometry, extreme length, or difficult handling makes vertical workflows impractical. Horizontal platforms are commonly used for testing wire, rope, chain, shackles, and cables where the length of the specimen exceeds the daylight of a standard vertical frame.
Accessories That Can Change the Best Machine Choice
Integrated accessories play a significant role in determining the final drive-system configuration. Advanced Universal Machine Testing often requires more than a base frame. Non-contact video extensometers provide optical strain measurement when researchers need to avoid specimen interaction or when the material is too delicate for traditional clip-on sensors.
Environmental accessories such as tensile test chambers and furnaces allow for testing at controlled temperatures. Once these specialized tools become part of the requirement, the best choice for a tensile testing machine may shift. High-temperature testing requires a frame capable of supporting the weight of a furnace and maintaining alignment under thermal stress. Selecting a Tensile Tester that integrates seamlessly with these accessories ensures the entire system functions as a cohesive unit.
Decision Checklist: What to Define Before You Request Quotes
Determining the laboratory requirements before contacting a supplier prevents common procurement errors.
- Identify the primary materials and expected failure modes.
- Specify the required test modes, including tension, compression, bending, or shear.
- Calculate the typical and maximum force range for the strongest anticipated samples.
- Estimate the frequency of high-load testing to assess the need for hydraulic durability.
- Evaluate the physical size of the specimens and the resulting fixture demands.
- Define the strain measurement accuracy required by internal or customer standards.
- Determine if temperature-controlled testing is a current or future requirement.
- Assess the reporting and software needs for data export and compliance.
- Review available laboratory space and the experience level of the operators.
Common Buying Mistakes
Choosing a drive system before defining real force requirements often leads to system underperformance. Some buyers assume that a hydraulic system is always the “premium” solution, even for low-load applications where an electromechanical frame would provide better resolution. Others assume that an electromechanical frame is sufficient for all future needs, only to find that new structural projects exceed the motor’s capacity.
Ignoring the integration of fixtures, extensometry, or environmental chambers during the initial selection can create compatibility issues later. Buying only for today’s tests without considering future material trends is another frequent error. Successful procurement requires comparing frame types based on the full test workflow rather than isolated machine labels.
Why Buyers Compare Universal Testing Machine Options on Torontech
Torontech presents a comprehensive comparison of servo-hydraulic, electromechanical, and specialized high-capacity systems within a single framework. This transparency allows buyers to evaluate systems based on real-world workflow demands. The organization connects base frames to essential strain measurement and environmental accessories, helping laboratories build complete testing solutions.
Explore Universal Testing Machine options from Torontech and request a quote for the servo-hydraulic or electromechanical configuration that matches your force range and lab workflow.
