Introduction
In sectors including consumer electronics, aviation, and medical devices, the competition involving product iteration and performance improvement has seen the need for micron-level precision in core components (e.g., ±0.01mm). Nevertheless, in attempting to achieve this level of precision, most companies have found themselves overwhelmed by high cost of production, late deliveries, and unpredictable yield levels. This problem could be attributed to a lack of holistic understanding of precision manufacturing, such as the choice of inappropriate manufacturing processes.
This article deconstructs the complete pathway to achieving reliable high precision CNC milling. It moves beyond simple machine selection to provide a framework for systematically balancing CNC milling accuracy and cost, empowering decision-makers to optimize their Custom Manufacturing Solutions strategy. The answers to the following five key questions will reveal the secrets to synergistic optimization of quality and cost in precision manufacturing.
What is True ±0.01mm Tolerance? A Manufacturing Systems Engineering Challenge Beyond the Number
The figure ±0.01mm on a drawing is a quantitative target, but its real-world implication is qualitative performance. In practice, this level of ±0.01mm tolerance CNC milling translates to zero-leakage seals in implantable medical pumps or stress-free, seamless fits in optical lens assemblies. Achieving this is not merely about a machine’s capability; it is the output of a meticulously controlled system.
Consistent precision CNC milling at this scale rests on four interdependent pillars: machine tool stability (e.g., thermally compensated spindles), cutting tool accuracy (from brands like Swiss STUDER), a controlled environment (20±1°C), and a rigorous, full-process quality control protocol, such as a “5-step inspection workflow.” A failure in any pillar compromises the entire outcome.
Consider a titanium alloy bone plate for orthopedic surgery. Even with a perfect machine, ambient temperature fluctuations causing material expansion, or unmonitored tool wear, can introduce deviations. The final part might pass a one-off check but fail in vivo due to micro-stresses, leading to fatigue. Therefore, reliable high precision CNC milling is a systemic result, not a single variable. Understanding the entire CNC milling process is the first step in building this system. For a deeper dive into the process, you can refer to this comprehensive overview of the CNC milling process.
3-Axis or 5-Axis? Choosing the Most Cost-Effective Path for Your Complex Parts
The decision on whether to employ 3-axis or 5-axis machining determines not only whether the part can be manufactured at all but also its production cost and precision. The primary distinction is in the number of degrees of freedom, whereby the former moves the tool linearly along X, Y and Z axes and thus performs excellently in prismatic part manufacturing, whereas the latter employs two additional rotating axes that permit machining all angles without having to remove or even rotate the workpiece.
A typical example would be an aircraft engine mount bracket that had multiple angles at which holes had to be drilled. In this case, the use of 3-axis machining entailed numerous fixturing and zeroing stages, which not only lengthened the processing time but could result in cumulative errors causing the accuracy to exceed ±0.03mm. In addition, the total price of using the equipment can come out to be unexpectedly high. On the other hand, employing 5-axis technology enables manufacturing of the whole part within one fixturing stage, hence avoiding possible errors caused by repeated positioning and making it easier to achieve ≤±0.01mm precision while lowering the cost overall.
Choosing the appropriate CNC milling services will depend on the part geometry. An appropriate logic could be employed in choosing the type of CNC milling service to use: for parts whose features are mainly on orthogonal planes, then 3-axis machining would be the most cost-effective method to employ. But where undercut, deep cavity, or continuously complex surfaces are involved, then 5-axis machining would be mandatory and also more cost-effective.A detailed comparison can be found in this comprehensive guide to CNC milling machining.
Must Precision and Cost Be Adversaries? Strategies for Cost-Effective High-Precision CNC Milling
Leveraging Design for Manufacturability (DFM)
DFM bridges the gap between the design and manufacturing processes. It avoids problems associated with manufacturing through optimized part geometries and intelligent tolerances when designing, thus minimizing machining time and tooling costs, and the best way to cut costs and meet specified accuracy requirements is DFM.
- Geometry Simplification
Proactively simplifying part design is key. Avoiding excessively deep pockets and standardizing non-critical radii minimizes tool changes and machining time, directly reducing cost without compromising the required CNC milling accuracy and cost balance.
- Intelligent Tolerancing
Applying the strictest tolerances (e.g., ±0.01mm) only to critical functional surfaces, while relaxing others, drastically reduces machining difficulty and expense. This tiered approach is a cornerstone of designing for efficient precision CNC milling.
Optimizing Process and Fostering Collaboration
Other techniques that go beyond design include high-speed machining, which optimizes the production cycle time. Nevertheless, the most important thing is to collaborate early on with the manufacturer because their engineering advice during the design process helps avoid any design changes.
What are the Hidden Challenges in Complex Parts Machining? Solutions from Thin-Wall Distortion to Deep-Hole Chatter

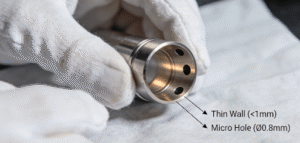

- File name2:cnc-machined-complex-part-thin-wall-micro-hole.jpg
Overcoming Thin-Wall Distortion
Successfully machining thin-walled features in complex parts CNC milling requires targeted strategies to counteract cutting forces. Using specialized vacuum fixtures provides even, minimal clamping force. The core tactic is a “high-speed, shallow-cut” programming approach, utilizing high RPM and low depth-of-cut to drastically reduce forces and prevent deflection, which is essential for high precision CNC milling.
Mastering Deep and Micro-Hole Machining
In addition to addressing the problem of chatter and breakage, precision machining for deep holes and micro-holes demands special attention. In case of deep holes, peck drilling is required for chip removal. In case of micro-holes, very fine carbide tools are used with the programming for helical interpolation to reduce radial force and protect the tool and the accuracy of the hole.
- Deep Holes Machining
Peck drilling cycles are required for deep holes. This process includes periodic withdrawal of the tool for chip removal.
- Micro-Hole Machining
Milling holes smaller than Ø1mm requires very fine grain carbide bits. One must apply the principle of “helical interpolation,” which means that the tool moves along a helical path toward the workpiece. This technique decreases the radial force, thus minimizing the chances of tool chatter and failure.
How to Choose a Reliable Precision Manufacturing Partner? Looking Beyond the Equipment List to Certification and Collaboration
In choosing a partner for Precision CNC Machining Services, an extensive list of equipment does not suffice. What sets a great partner apart is a robust Quality Management System and engineering skills that ensure reliability and consistency, not just sporadic high precision.
International certifications are evidence of such systems. ISO 9001 is basic quality management certification, while IATF 16949 (for automotive) and AS9100D (for aerospace) offer stricter risk-based requirements. ISO 13485 is essential for manufacturing medical devices. Such frameworks form the basis of trusted Custom Manufacturing Solutions.
It is through collaboration with partners that the real value is demonstrated. A top-notch provider offers complimentary, detailed Design for Manufacturability (DFM) analysis to mitigate risks at early stages. Effective project and cost management brings transparency. End-to-end supply chain management makes delivery of services from prototyping to mass production flawless. JS Precision serves as an example of this approach. Being skilled engineers working within the scope of an ISO-certified quality management system, JS Precision acts as an extended R&D team of their customers, guaranteeing full control over quality, cost, and time.
Conclusion
Micron-level accuracy while keeping costs under control isn’t an outcome of some technological revolution alone. Rather, it is the outcome of having a thorough knowledge and mastery of the whole manufacturing process chain. From requirement specification to machining method selection (either 3-axis or 5-axis), then on to DFM and cooperation with an advanced company like ours—one that is equipped to handle such projects—this comprehensive approach allows firms in the fiercely competitive Consumer Electronics Production industry to leverage precision machining as a source of competitive advantage.
What obstacles will your future precision machining project encounter? Upload your part drawings now and get your free Design for Manufacturability analysis and quote. Discover a truly end-to-end Custom Manufacturing Solutions experience.
Author Bio
The author acts as an industrial manufacturing analyst contributor to Bents Magazine, with expertise in conducting and writing material about manufacturing technologies and the digital transformation of industry.
FAQs
Q: Can all materials achieve machining tolerance of 0.01mm?
A: This varies as not all materials can be machined to the same tolerance level. Materials that are easy to machine such as aluminum are simpler to handle, on the other hand, materials that are hard to machine like titanium or stainless steel need special tooling, a well-tailored process, strict temperature control leading to higher cost and technical challenges.
Q: Is the cost of a 5-axis CNC always higher than a 3-axis?
A: Not always. When it comes to complex geometries, 5-axis machining can complete the part in one handling, thus eliminating the need for fixtures, as well as the time and errors resulting from multiple setups. This can actually decrease the total cost and enhance accuracy. However, for simple parts, 3-axis is still the most economical choice.
Q: How do I manage costs for high-precision machining during the design stage?
A: One of the main solutions is to Design for Manufacturability (DFM). Refining featureslike steering clear of very deep cavities, leaving standard radii on non-critical parts, and giving generous tolerances to non-mating surfaceswill go a long way in cutting the difficulty, time, and tool wear during the machining process..
Q: What is the usual turnaround time for high-precision CNC milling?
A: The answer varies greatly depending on the design complexity of the part and the quantity ordered. Simple prototypes may be shipped within 3 to 5 business days, while complex projects or production runs could take 1 to 4 weeks. A precise schedule is always attached to the price quote.
Q: Apart from CNC milling, which other manufacturing methods can produce high-precision parts?
A: Precision CNC turning, Electrical Discharge Machining (EDM), or metal Additive Manufacturing (SLM) could be considered depending on the requirements. Part geometry material precision level, and budget will determine the best mix of processes, which is something a professional manufacturer can advise on.
